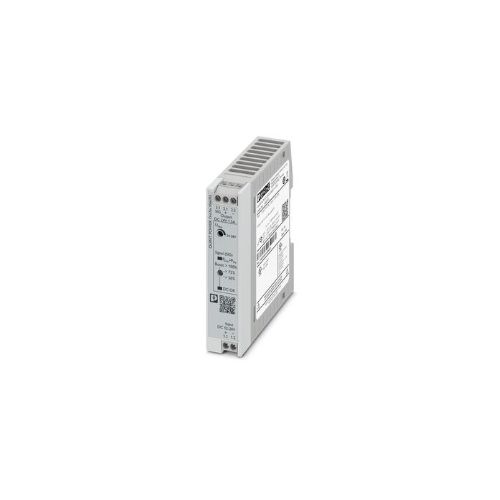

QUINT4-PS/12-24DC/24DC/1 | 1066703 | DC/DC Converter

DIN Rail QUINT DC/DC Converter, Nominal input range 12 V DC to 24 V DC Nominal output voltage 24 V DC LED indicator, UL approved, IECEE CB Scheme

More Information
Complete Electronics Part No.	1066703
Manufacturers Part No.	1066703
Nominal Input Voltage:	12 - 24 V DC
Nominal Output Voltage:	24 V DC / 1.3 A
Output Setting Range:	24 V DC to 28 V DC

Description

DIN Rail DC/DC Converter for DIN rail mounting

Nominal input voltage range: 12 V DC to 24 V DC
Current Consumption: 3.75 A (12 V DC), 1.85 A (24 V DC)
Input Connection method: Screw connection
Input Fuse: 15 A, (fast blow, internal)
Recommended breaker for input protection: 10 A ... 16 A (Characteristic B, C, D, K or comparable)
Nominal Output Voltage: 24 V DC
Setting range of the output voltage: 24 V DC ... 28 V DC (> 24 V DC, constant capacity)
Nominal Output current: 1.3 A
Output Connection method: Screw connection
LED signaling
Connection in Series: YES
Housing Material: Polycarbonate (PC), UL 94 V0
Operating temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
Width: 22.5 mm
Height: 99 mm
Depth: 90 mm
Ingress protection: IP20
Weight (excluding packing): 169g
Customs tariff number: 85044030
GTIN: 4055626733692
UL Approved, IECEE CB Scheme
Country of origin: China
