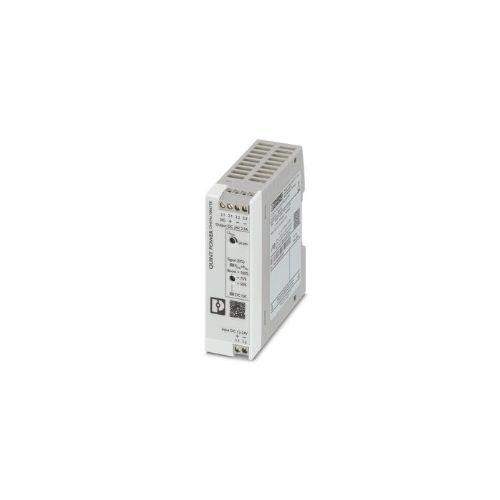

QUINT4-PS/12-24DC/24DC/2.5/SC | 1066718 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 12 V DC ... 24 V DC, Nominal output voltage 24 V DC, LED indicator, UL approved
| Complete Electronics Part No. | 1066718 |
|---|---|
| Manufacturers Part No. | 1066718 |
| Nominal Input Voltage: | 12 - 24 V DC |
| Nominal Output Voltage: | 24 V DC / 2.5 A |
| Output Setting Range: | 24 V DC to 28 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- With SFB (Selective Fuse Breaking)
- Nominal input voltage range: input: 12 - 24 V DC
- Current Consumption: typ. 7.2 A (12 V DC), typ. 3.5 A (24 V DC)
- Input Fuse: 15 A (fast blow, internal)
- Recommended breaker: 10 A ... 16 A (Characteristic B, C, D, K or comparable)
- Input Connection method: Screw Connection
- Nominal Output Voltage: 24 V DC ±1 %
- Setting range of the output voltage 24 V DC ... 28 V DC (> 24 V DC, constant capacity)
- Nominal Output current: 2.5 A
- Connection in parallel: YES
- Output Connection method: Screw Connection
- LED signaling
- Housing Material: Polycarbonate (PC), UL 94 V0
- Operating temperature: -25°C ... 70°C (> 60°C Derating: 2,5 %/K)
- Width: 32 mm
- Height: 99 mm
- Depth: 90 mm
- Ingress protection: IP20
- Weight (excluding packing): 246g
- Customs tariff number: 85044030
- GTIN: 4055626734507
- UL Approved, IECEE CB Scheme, Shipbuilding
- Country of origin: China
