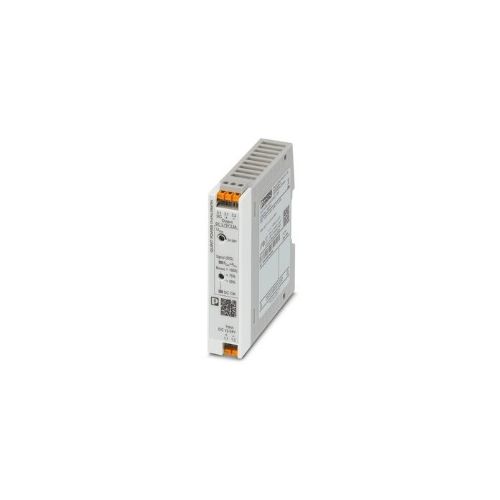

QUINT4-PS/12-24DC/5-15DC/2 | 1066704 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 12 V DC to 24 V DC, Nominal output voltage 12 V DC LED indicator, UL approved
| Complete Electronics Part No. | 1066704 |
|---|---|
| Manufacturers Part No. | 1066704 |
| Nominal Input Voltage: | 12 - 24 V DC |
| Nominal Output Voltage: | 12 V DC / 2.5 A |
| Output Setting Range: | 5 V DC to 15 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- Nominal input voltage range: 12 V DC to 24 V DC
- Current Consumption: 3.55 A (12 V DC), 1.75 A (24 V DC)
- Input Fuse: 15 A (fast blow, internal)
- Recommended breaker for input protection: 10 A ... 16 A (Characteristic B, C, D, K or comparable)
- Input Connection method: Pluggable screw connection
- Nominal Output Voltage: 12 V DC
- Setting range of the output voltage: 5 V DC ... 15 V DC (> 12 V DC, constant capacity)
- Nominal Output current: 2.5 A
- Output Connection method: Pluggable screw connection
- LED signaling
- Housing Material: Polycarbonate (PC), UL 94 V0
- Operating temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
- Flamability rating (UL 94): V0
- Width: 22.5 mm
- Height: 106 mm
- Depth: 90 mm
- Ingress protection: IP20
- Weight (excluding packing): 172g
- Customs tariff number: 85044030
- GTIN: 4055626734255
- UL Approved
- Country of origin: China
