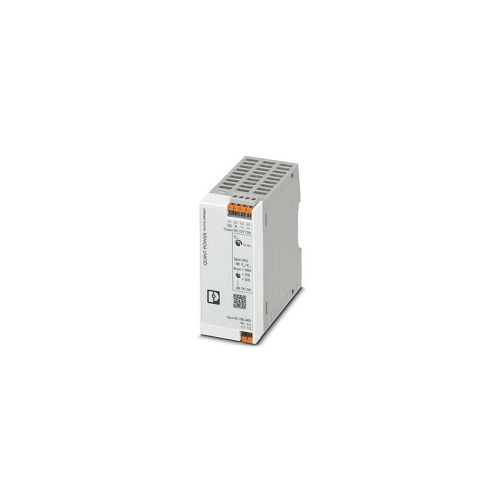

QUINT4-PS/1AC/12DC/7.5/PT | 2904607 | Quint4 PSU
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 12 V DC / 7.5 A
| Complete Electronics Part No. | 2904607 |
|---|---|
| Manufacturers Part No. | 2904607 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 12 V DC / 7.5 A |
Description
QUINT4-PS/1AC/12DC/7.5/PT
Quint4 Power PSU For DIN Rail Mount
Power Supplies with Maximum Functionality
Nominal input range: 100 V AC to 240 V AC / 110 V DC to 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: 3.15 A slow-blow, (internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C)
Output Voltage: 12 V DC
Output power: 90 W
Output current: 7.5 A
Transient surge protection; Varistor
Operating temperature: -25°C ... 70°C (Derating >60°C: 2.5 %/K)
Connection method: Push In
See datasheet for full technical details
LED signaling
Width: 45 mm
Height: 106 mm
Depth: 90 mm
Housing material: Polycarbonate
Ingress protection: IP20
Weight (excluding packing): 307 g
Part Number: 2904607
Customs tariff number: 85044095
GTIN: GTIN 4055626255767
Country of origin: Vietnam
