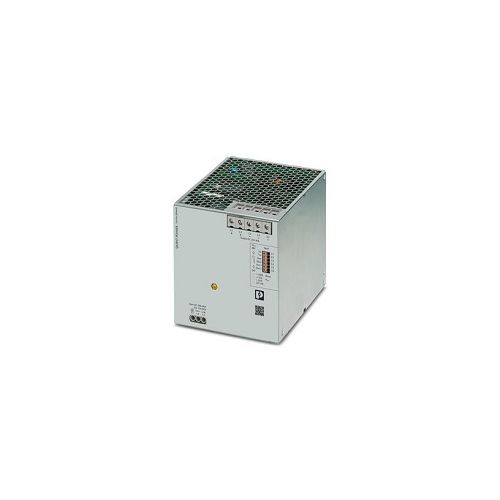

QUINT4-PS/1AC/24DC/40/+ | 2904618 | Quint4 PSU
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 40 A
| Complete Electronics Part No. | 2904618 |
|---|---|
| Manufacturers Part No. | 2904618 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 40 A |
Description
QUINT4-PS/1AC/24DC/40/+
Quint4 Power PSU For DIN Rail Mount
Power Supplies with Maximum Functionality
Nominal input range: 100 V AC to 240 V AC / 110 V DC to 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: 16 A slow-blow, (internal)
Recommended breaker for input protection: 16 A....20 A (Characteristics B, C, D, K)
Output Voltage: 24 V DC
Output power: 960 W
Output current: 40 A
Transient surge protection; Varistor, gas-filled surge arrester
Operating temperature: -25°C ... 70°C (Derating >60°C: 2.5 %/K)
Connection method: Screw / Push In
See datasheet for full technical details
LED signaling
Width: 120 mm
Height: 130 mm
Depth: 140 mm
Housing material: Stainless steel X6Cr17 / Aluminum
Ingress protection: IP20
Weight (excluding packing): 3, 261 g
Part Number: 2904618
Customs tariff number: 85044095
GTIN: GTIN 4055626909387
Country of origin: Thailand
