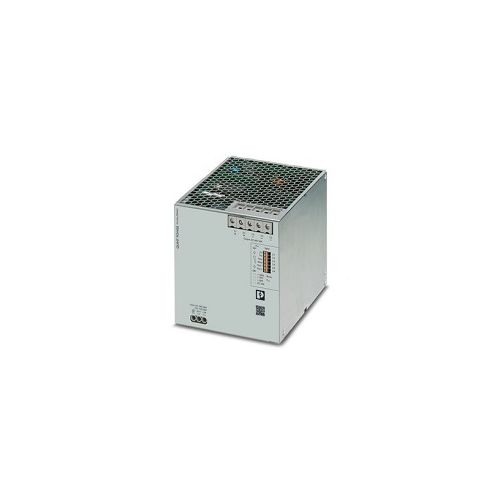

QUINT4-PS/1AC/48DC/20 | 2904612 | Quint4 PSU
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking), input: 1-phase, output: 48 V DC/20A
| Complete Electronics Part No. | 2904612 |
|---|---|
| Manufacturers Part No. | 2904612 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 48 V DC / 20 A |
Description
QUINT4-PS/1AC/48DC/20
Quint4 Power PSU For DIN Rail Mount
Power Supplies with Maximum Functionality
Nominal input range: 100 V AC to 240 V AC / 110 V DC to 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: 16 A slow-blow, (internal)
Recommended breaker for input protection: 16 A....20 A (Characteristics B, C, D, K)
Output Voltage: 48 V DC
Output power: 960 W
Output current: 20 A
Transient surge protection;
Operating temperature: -25°C ... 70°C (Derating >60°C: 2.5 %/K)
Connection method: Screw / Push In
See datasheet for full technical details
LED signaling
Width: 120 mm
Height: 130 mm
Depth: 140 mm
Housing material: Stainless steel X6Cr17 / Aluminium
Ingress protection: IP20
Weight (excluding packing): 2,900 g
Part Number: 2904612
Customs tariff number: 85044095
GTIN: 4063151023485
Country of origin: Thailand
