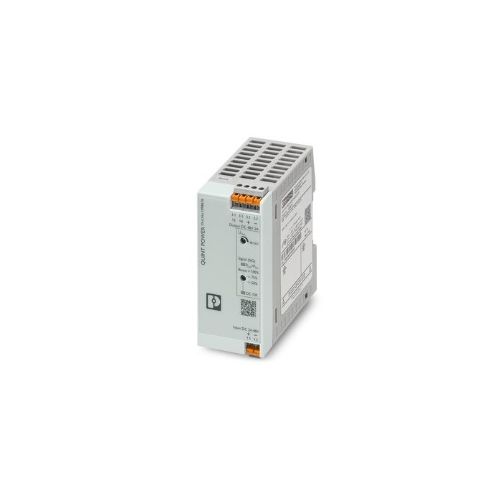

QUINT4-PS/24-48DC/48DC/2/PT | 1098676 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC to 48 V DC Nominal output voltage 48 V DC Plugable Screw connection, LED indicator, UL approved
| Complete Electronics Part No. | 1098676 |
|---|---|
| Manufacturers Part No. | 1098676 |
| Nominal Input Voltage: | 24 V DC to 48 V DC |
| Nominal Output Voltage: | 48 V DC / 2 A |
| Output Setting Range: | 48 V DC to 56 V DC |
Description
DIN Rail DC/DC Converter
Primary-switched QUINT DC/DC converter
- Nominal input voltage range: 24 V DC to 48 V DC
- Current Consumption: 8 A
- Input Fuse: 15 A (Slow Blow internal
- Recommended breaker for input protection: 10 A ... 16 A (Characteristics B, C, D, K)
- Input Connection method: Pluggable screw connection
- Nominal Output Voltage: 48 V DC ±1 %
- Setting range of the output voltage: 48 V DC ... 56 V DC (> 48 V DC, constant capacity)
- Nominal Output current: 2 A
- Derating: 60°C ...> 60 °C (2.5%/K of POut nom.)
- Output Connection method: Pluggable screw connection
- LED signaling
- Housing Material: Polycarbonate (PC), UL 94 V0
- Operating temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
- Width: 90 mm
- Height: 106 mm
- Depth: 45 mm
- Ingress protection: IP20
- Weight (excluding packing): 344g
- Customs tariff number: 85044030
- GTIN: 4055626944395
- UL Approved
- Country of origin: China
