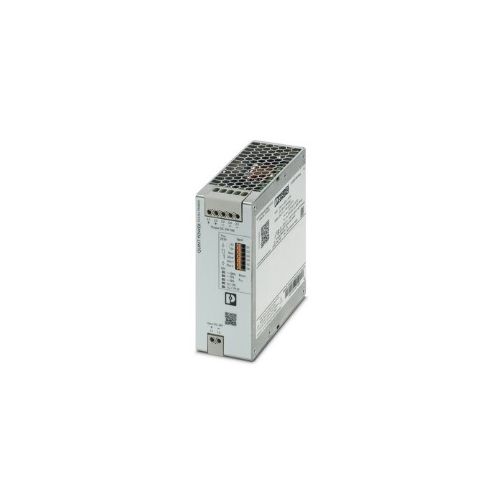

QUINT4-PS/24DC/24DC/10/SC | 1046803 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC Nominal output voltage 24 V DC Plugable Screw connection, LED indicator, UL approved
| Complete Electronics Part No. | 1046803 |
|---|---|
| Manufacturers Part No. | 1046803 |
| Nominal Input Voltage: | 24 V DC |
| Nominal Output Voltage: | 24 V DC / 10 A |
| Output Setting Range: | 24 V DC to 29.5 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- SFB Technology (Selective Fuse Breaking)
- Nominal input voltage range: 24 V DC
- Current Consumption: 13.8 A (24 V DC)
- Input Fuse: 30 A (slow-blow, internal)
- Recommended breaker for input protection: 16 A ... 20 A (Characteristic B, C, D, K or comparable)
- Input Connection method: Pluggable screw connection
- Nominal Output Voltage: 24 V DC
- Setting range of the output voltage: 24 V DC ... 29.5 V DC (> 24 V DC, constant capacity)
- Nominal Output current: 10 A
- Output Connection method: Pluggable screw connection
- LED signaling
- Housing Material: Metal
- Operating temperature: -25°C ... 70°C (> 60 °C derating, 2.5 %/K,)
- Connection in parallel: Yes
- Connection in serial: Yes
- Width: 50 mm
- Height: 130 mm
- Depth: 125 mm
- Ingress protection: IP20
- Weight (excluding packing): 900g
- Customs tariff number: 85044030
- GTIN: 4055626643748
- UL Approved, Shipbuiling Approved
- Country of origin: Thailand
