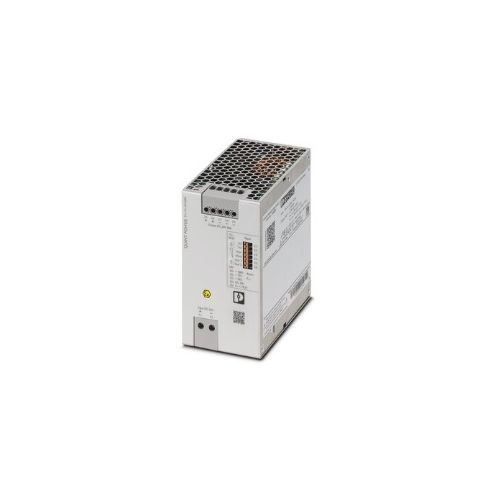

QUINT4-PS/24DC/24DC/20/SC/+ | 1046881 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC, Nominal output voltage 24 V DC LED indicator, UL approved
| Complete Electronics Part No. | 1046881 |
|---|---|
| Manufacturers Part No. | 1046881 |
| Nominal Input Voltage: | 24 V DC |
| Nominal Output Voltage: | 24 V DC / 20 A |
| Output Setting Range: | 24 V DC to 28 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- SFB Technology (Selective Fuse Breaking)
- Nominal input voltage range: 24 V DC
- Current Consumption: 27 A (24 V DC)
- Recommended breaker for input protection: 50 A (Characteristic B, C or comparable)
- Signal Remote (configurable)
- Input Connection method: Screw connection
- Nominal Output Voltage: 24 V DC
- Setting range of the output voltage: 24 V DC ... 28 V DC (> 24 V DC, constant capacity)
- Nominal Output current: 20 A
- Output Connection method: Screw connection
- LED signaling
- Housing Material: Metal
- Operating temperature: -40°C ... 70°C (> 60 °C Derating: 2,5 %/K)
- Width: 70 mm
- Height: 130 mm
- Depth: 125 mm
- Ingress protection: IP20
- Weight (excluding packing): 1200g
- Customs tariff number: 85044030
- GTIN: 4055626645629
- UL Approved, Ship Building, ATEX
- Country of origin: Thailand
