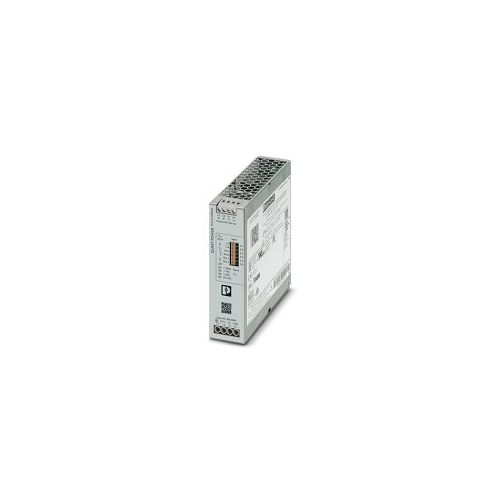

QUINT4-PS/3AC/24DC/5 | 2904620 | Quint4 PSU
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking), input: 1-phase, output: 24 V DC/5A
| Complete Electronics Part No. | 2904620 |
|---|---|
| Manufacturers Part No. | 2904620 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 5 A |
Description
QUINT4-PS/3AC/24DC/5
Quint4 Power PSU For DIN Rail Mount
Power Supplies with Maximum Functionality
Nominal input range: 3 x 400 V AC to 500 V AC / 260 V DC to 300 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: 2 A slow-blow, (internal)
Recommended breaker for input protection: 3 x 6 A (Characteristics B, C)
Output Voltage: 24 V DC
Output power: 120 W
Output current: 5 A
Transient surge protection; Varistor, gas-filled surge arrester
Operating temperature: -25°C ... 70°C (Derating >60°C: 2.5 %/K)
Connection method: Screw / Push In
See datasheet for full technical details
LED signaling
Width: 36 mm
Height: 130 mm
Depth: 125 mm
Housing material: Stainless steel X6Cr17 / Aluminium
Ingress protection: IP20
Weight (excluding packing): 628 g
Part Number: 2904620
Customs tariff number: 85044095
GTIN: 4046356985369
Country of origin: Thailand
