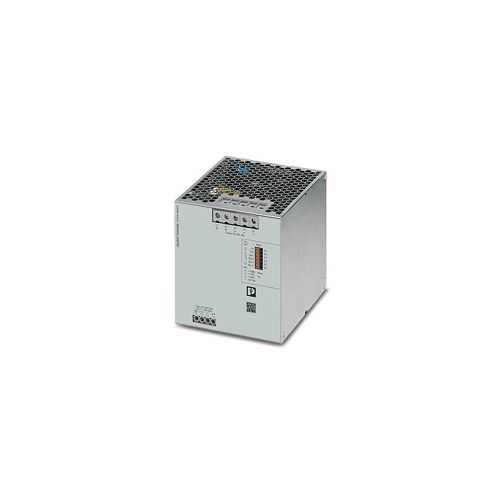

QUINT4-PS/3AC/48DC/20 | 2904627 | Quint4 PSU
QUINT POWER primary-switched power supply with free choice of output characteristic curve, SFB (Selective Fuse Breaking), input: 3-phase, output: 48 V DC/20 A
| Complete Electronics Part No. | 2904627 |
|---|---|
| Manufacturers Part No. | 2904627 |
| Nominal Input Voltage: | 3 x 400 V AC - 500 V AC |
| Nominal Output Voltage: | 48 V DC / 20 A |
Description
QUINT4-PS/3AC/48DC/20
Quint4 Power PSU For DIN Rail Mount
Power Supplies with Maximum Functionality
Nominal input range: 3 x 400 V AC to 500 V AC / 260 V DC to 300 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: ≥ 300 V AC
Recommended breaker for input protection: 3 x 4 A to 20 A (Characteristics B, C, D, K)
Output Voltage: 48 V DC
Output power: 960 W
Output current: 20 A
Transient surge protection; Varistor, gas-filled surge arrester
Operating temperature: -25°C ... 70°C (Derating >60°C: 2.5 %/K)
Connection method: Screw / Push In
See datasheet for full technical details
LED signaling
Width: 120 mm
Height: 130 mm
Depth: 125 mm
Housing material: Stainless steel X6Cr17 / Aluminium
Ingress protection: IP20
Weight (excluding packing): 2,811 g
Part Number: 2904627
Customs tariff number: 85044095
GTIN: 4063151023171
Country of origin: Thailand
