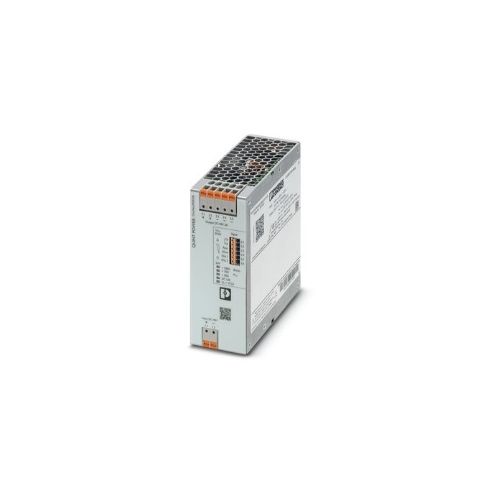

QUINT4-PS/48DC/48DC/5/PT | 2910128 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 48 V DC, Nominal output voltage 48 V DC LED indicator, UL approved, shipbuilding
| Complete Electronics Part No. | 2910128 |
|---|---|
| Manufacturers Part No. | 2910128 |
| Nominal Input Voltage: | 48 V DC |
| Nominal Output Voltage: | 48 V DC / 5A |
| Output Setting Range: | 48 V DC to 56 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- SFB Technology (Selective Fuse Breaking)
- Nominal input voltage range: 48 V DC
- Current Consumption: 6.8 A (48 V DC)
- Input Fuse: 20 a (slow blow, internal)
- Recommended breaker for input protection: 16 A ... 20 A (Characteristic B, C, D, K or comparable)
- Input Connection method: Push in connection
- Signal Remote (configurable)
- Nominal Output Voltage: 48 V DC
- Setting range of the output voltage (48 V DC ... 56 V DC (> 48 V constant capacity)
- Nominal Output current: 5 A
- Connection in parallel: YES
- Output Connection method: Push in connection
- LED signaling
- Housing Material: Metal
- Operating temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
- Width: 50 mm
- Height: 130 mm
- Depth: 125 mm
- Ingress protection: IP20
- Weight (excluding packing): 1032g
- Customs tariff number: 85044030
- GTIN: 4055626537320
- UL Approved, shipbuilding
- Country of origin: Thailand
