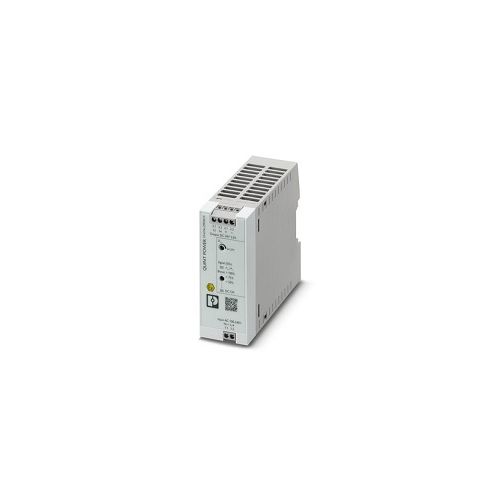

QUINT4-SYS-PS/1AC/24DC/2.5/SC | 2904614 | Quint4 PSU
Primary-switched power supply, QUINT POWER, screw connection, DIN rail mounting, supply of devices possible via the TBUS DIN rail connector
| Complete Electronics Part No. | 2904614 |
|---|---|
| Manufacturers Part No. | 2904614 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 2.5 A |
Description
QUINT4-SYS-PS/1AC/24DC/2.5/SC
Quint4 Power PSU For DIN Rail Mount
Power Supplies with Maximum Functionality
Also for operation in potentially explosive areas (zone 2)
Nominal input range: 100 V AC to 240 V AC / 110 V DC to 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: 4 A slow-blow, (internal)
Recommended breaker for input protection: 6A....16 A (Characteristics B, C, D, K)
Output Voltage: 24 V DC
Output power: 60 W
Output current: 2.5 A
Transient surge protection; Varistor
Operating temperature: -25°C ... 70°C (Derating >60°C: 2.5 %/K)
Connection method: Screw
With protective coating
See datasheet for full technical details
LED signaling
Width: 40 mm
Height: 99 mm
Depth: 114 mm
Housing material: Polycarbonate
Ingress protection: IP20
Weight (excluding packing): 187 g
Part Number: 2909575
Customs tariff number: 85044095
GTIN: 4055626356471
Country of origin: Germany
