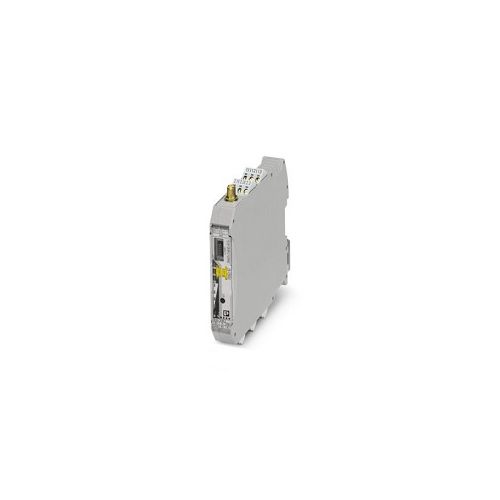

RAD-2400-IFS | 2901541 | Wireless module
Radioline - 2.4 GHz wireless transceiver with RS-232/RS-485 interface, can be extended with I/O modules, RSMA (female) antenna connection
| Complete Electronics Part No. | 2901541 |
|---|---|
| Manufacturers Part No. | 2901541 |
| Ethernet Product Type: | Wireless Module |
Description
Wireless module - RAD-2400-IFS
- Supply Voltage range: 19.2 V DC ... 30.5 V DC
- Supply Current:: ≤ 65 mA (at 24 V DC, at 25 °C, stand-alone) / ≤ 6 A (at 24 V DC, with DIN rail connector at full capacity)
- Digital Output: x 1 RF link relay output
- Analog Output: RSSI voltage output
- RE232 Connection method: COMBICON plug-in screw terminal block
- Termination Resistor: 390 Ω / 150 Ω / 390 Ω (switchable via DIP switches)
- Serial Configuration connection:S-PORT (socket)
- Wireless: Trusted Wireless, 2400MHz
- Wireless Channel distance 1.3MHz
- Number of channel groups: 8
- Number of channels per group: 55
- Data Rate: 16 Kbps / 125Kbps (Default) 250 Kbps (All adjustable)Antenna
- Connection Method: RSMA (female)
- Width: 75.5mm
- Height: 116mm
- Depth: 114.5 mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C (>55°C derating)
- Weight per Piece (excluding packing): 228.75 g
- Part Number 2901541
- Customs tariff number: 85176200
- Country of origin: DE
