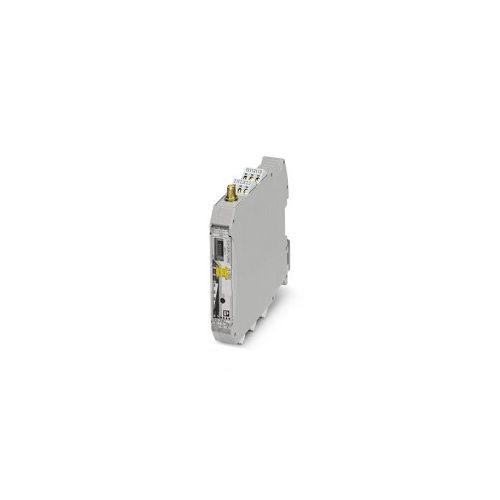

RAD-2400-IFS-JP | 2702863 | Wireless module
Radioline - 2.4 GHz wireless transceiver with RS-232/485 interface, can be extended with I/O modules, RSMA (female) antenna connection
| Complete Electronics Part No. | 2702863 |
|---|---|
| Manufacturers Part No. | 2702863 |
| Ethernet Product Type: | Wireless Module |
Description
Wireless module - RAD-900-IFS
- 2.4 GHz wireless transceiver
- Integrated RS-232/485
- License-free 2.4 GHz frequency band
- Quick and easy startup without programming
- Mesh networks of up to 250 devices
- High degree of reliability due to Trusted Wireless 2.0 technology
- Modular extension with up to 32 I/O extension modules supported
- Approval for Japan
- Supply Voltage range: 19.2 V DC ... 30.5 V DC
- Max Supply Current: ≤ 65 mA (at 24 V DC, at 25 °C, stand-alone)
- 1 x RF link relay output
- Max switching voltage: 30 V AC/DC
- RSSI Voltage output: 0 V...3 V
- Connection Method: Screw
- LED Signaling
- Width: 17.5mm
- Height: 116mm
- Depth: 114.5mm
- Housing material: PA 6.6-FR
- Colour: Green
- DIN rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C
- Weight per Piece (excluding packing): 197.5 g
- Part Number 2702863
- Customs tariff number: 85176200
- Country of origin: DE
