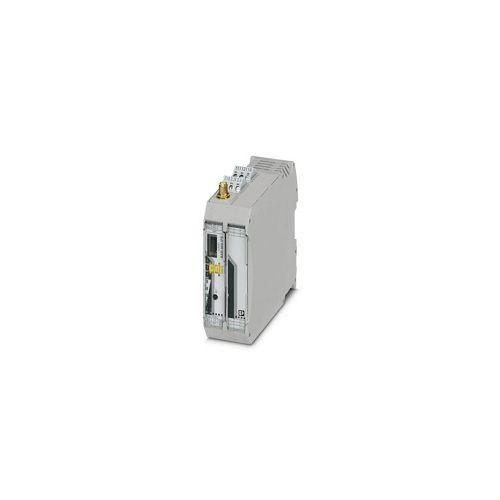

RAD-900-IFS | 2901540 | Wireless module
Radioline - 900 MHz wireless transceiver with RS-232/485 interface, can be extended with I/O modules, RSMA (female) antenna connection
| Complete Electronics Part No. | 2901540 |
|---|---|
| Manufacturers Part No. | 2901540 |
| Ethernet Product Type: | Wireless Module |
Description
Wireless module - RAD-900-IFS
- 900 MHz wireless transceiver
- RS-232/485
- Quick and easy startup without programming
- Mesh networks of up to 250 devices
- High degree of reliability due to Trusted Wireless 2.0 technology
- can be extended with I/O modules
- Supply Voltage range: 10.8 V DC ... 30.5 V DC
- Max Supply Current: 328mA (at 24 V DC)
- 1 x RF link relay output
- Max switching voltage: 30 V AC/DC
- RSSI Voltage output: 0 V...3 V
- Connection Method: Screw
- LED Signaling
- Width: 35mm
- Height: 116mm
- Depth: 114.5mm
- Housing material: PA 6.6-FR
- Colour: Green
- DIN rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C
- Weight per Piece (excluding packing): 343 g
- Part Number 2901540
- Customs tariff number: 85176200
- Country of origin: US
