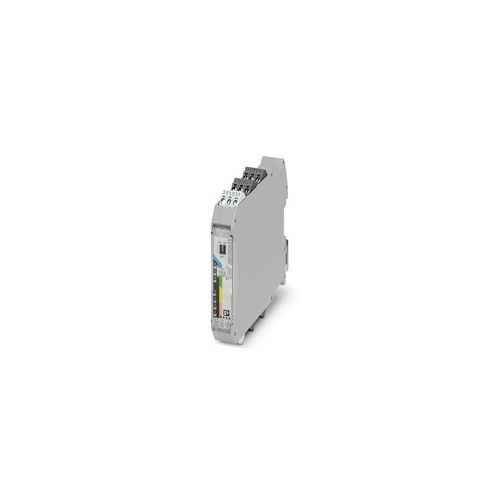

RAD-DAIO6-IFS | 2901533 | I/O Extension module
Radioline - I/O extension module, 2 digital inputs and outputs (0 ... 250 V AC/DC) and 1 analog input (0/4 ... 20 mA) and output (0/4 ... 20 mA, 0 ... 10 V)
| Complete Electronics Part No. | 2901533 |
|---|---|
| Manufacturers Part No. | 2901533 |
| Ethernet Product Type: | I/O Extension Module |
Description
I/O Extension module - RAD-DAIO6-IFS
- Supply Voltage range: 19.2 V DC ... 30.5 V DC (DIN Rail Connector)
- Max Current Consumption: ≤ 95 mA (At 24 V DC, at 25°C)
- 2 digital inputs and outputs (0 ... 250 V AC/DC) and 1 analog input (0/4 ... 20 mA) and output (0/4 ... 20 mA, 0 ... 10 V)Analog Output: RSSI voltage output
- Connection Method: Screw Connection
- LED Signaling
- Width: 17.5mm
- Height: 113mm
- Depth: 114.5 mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C (>55°C derating)
- Weight per Piece (excluding packing): 230.1 g
- Part Number 2901533
- Customs tariff number: 85177900
- Country of origin: DE
