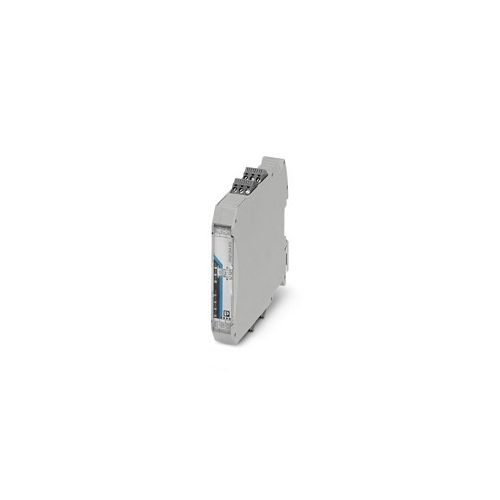

RAD-DI4-IFS | 2901535 | I/O Extension module
Radioline - I/O extension module, 4 digital inputs (0 ... 250 V AC/DC), Channel-to-channel electrical isolation
| Complete Electronics Part No. | 2901535 |
|---|---|
| Manufacturers Part No. | 2901535 |
| Ethernet Product Type: | I/O Extension Module |
Description
I/O Extension module - RAD-DI4-IFS
- Easy startup via thumbwheel
- Channel-to-channel electrical isolation
- Extended temperature range, -40 ºC ... +70 ºC
- Easy module replacement even during operation (hot swap)
- Approved for use in zone 2
- Supply Voltage range: 19.2 V DC ... 30.5 V DC (DIN Rail Connector)
- Max Current Consumption: ≤ 11 mA (At 24 V DC, at 25°C)
- 4 x Digital inputs
- Voltage input signal: 0 V. AC/DC....250 V AC/DC
- Current output signal: 0 mA....20 mA / 4 mA....20 mA
- Connection Method: Screw Connection
- LED Signaling
- Width: 17.5mm
- Height: 113mm
- Depth: 114.5 mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C
- Weight per Piece (excluding packing): 163.2 g
- Part Number 2901535
- Customs tariff number: 85177900
- Country of origin: DE
