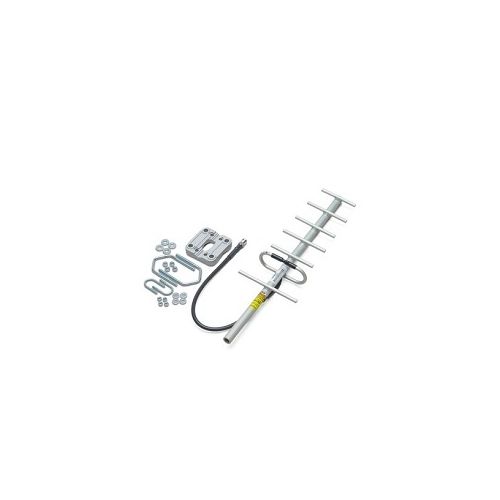

RAD-ISM-900-ANT-YAGI-10-N | 5606614 | Antenna
Directional antenna 868 MHz / 900 MHz, gain: 12 dBi, polarization: linear, opening angle: h/v 56°/46°, IP65, connection: N (female)
| Complete Electronics Part No. | 5606614 |
|---|---|
| Manufacturers Part No. | 5606614 |
| Ethernet Product Type: | Antenna |
Description
Antenna - ANT-DIR-868-01
- Directional antenna
- For point-to-point connections
- For large distances
- Frequency 868 MHz / 900 MHz
- Impedance: 50 Ω
- Gain 12 dBi
- Polarization: Linear
- Opening angle: h/v 56°/46°
- Connection method: N (female)
- Ingress Protection: IP65
- Antenna housing: Aluminium
- Bracket: V2A
- U shaped screw: V2A
- Width: 60.5 mm
- Height: 172 mm
- Length: 609.6 mm
- Operating Temperature: -40°C ... 80°C
- Weight per Piece (excluding packing): 1.7 Kg
- Part Number 5606614
- Customs tariff number: 85177100
- Country of origin: US
