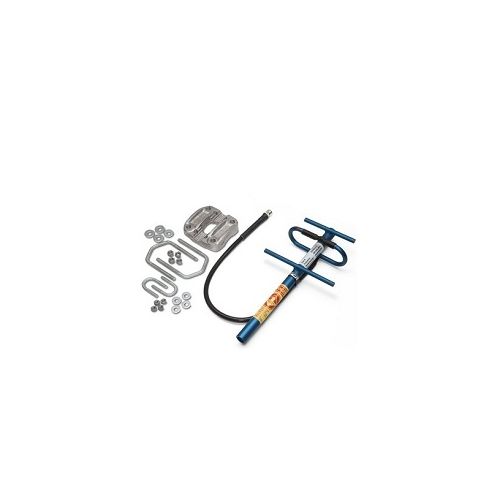

RAD-ISM-900-ANT-YAGI-6.5-N | 2867814 | Antenna
Directional antenna, 868 MHz / 900 MHz, gain: 8.5 dBi, polarization: linear, IP65, connection: N (female), incl. mounting bracket and mast clips
| Complete Electronics Part No. | 2867814 |
|---|---|
| Manufacturers Part No. | 2867814 |
| Ethernet Product Type: | Antenna |
Description
Antenna - RAD-ISM-900-ANT-YAGI-6.5-N
- Directional antenna
- Frequency 868 MHz / 900 MHz
- Impedance: 50 Ω
- Gain 8.5 dBi
- Polarization: Linear
- Opening angle: h/v 100°/62°
- Connection method: N (female) with cable (0.6 m)
- Ingress Protection: IP65
- Antenna housing: Aluminium
- Bracket: V2A
- U shaped screw: V2A
- Wall mounting bracket included
- Width:: 60.5 cm
- Height: 172 cm
- Length: 304.8 mm
- Operating Temperature: -40°C ... 80°C
- Mast Mounting
- Weight per Piece (excluding packing): 444.44 g
- Part Number 2867814
- Customs tariff number: 85177100
- Country of origin: US
