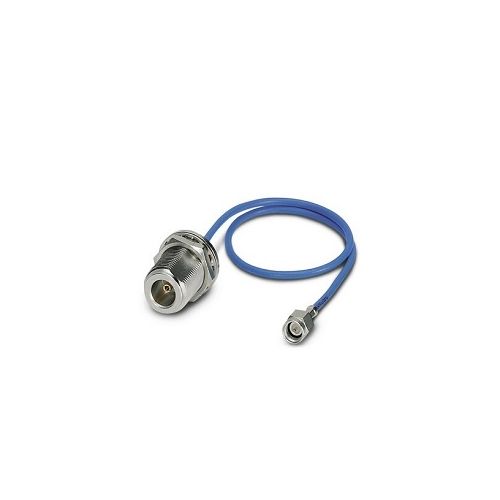

RAD-PIG-EF316-N-SMA | 2867694 | Antenna Cable
Antenna cable, outside diameter: 3.2 mm (0.126 in.), inner conductor: stranded, connection: SMA (male) -> N (female), cable length: 0.3 m (1 ft.)
| Complete Electronics Part No. | 2867694 |
|---|---|
| Manufacturers Part No. | 2867694 |
| Ethernet Product Type: | Antenna Cable |
Description
Antenna Cable - RAD-PIG-EF316-N-SMA
- SMA (male) to N (female)
- Cable outside diameter: 3.2 mm (0.126 in.)
- Halogen Free
- Flame Retardant
- UV resistant
- Oil resistant
- For indoor installation
- Frequency Range: 0.3GHz....6GHz
- Impedance: 50 Ω
- Length: 0.3 m (1 foot)
- Cable Type: EF316
- External Cable Diameter: 10 mm
- Outer Sheath Material: RADOX®(LSFH)
- Colour: Blue
- Operating Temperature: -40°C ... 105°C
- Weight per Piece (excluding packing): 32.1 g
- Part Number 2867694
- Customs tariff number: 85442000
- Country of origin: PL
