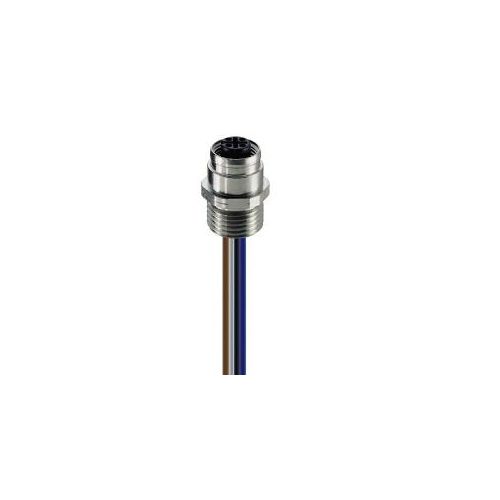

RKFM 4-3/0,5 M | 26130 | Connector
Receptacle Connector, M12 female, 4 pole, cable length 0.5m
| Complete Electronics Part No. | 26130 |
|---|---|
| Manufacturers Part No. | 26130 |
| Type: | Recptacle Connector |
| Mounting: | Front Mounting |
| Coded Option (Circular) | A |
| Male/Female: | Female M12 |
| Cable Entry: | Straight |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A at 40°C |
| IP Rating: | IP67 |
Description
RKFM 4-3/0,5 M
Receptacle Connector
- For front mounting
- M12 female connector
- Assembled stranded wire
- Solder contacts potted with epoxy
- 4 Pole Connector 3 poles connected (pin 2=n.c.)
- A Coding
- Chassis side thread M16 x 1.5(panel nut RSKFM 16)
