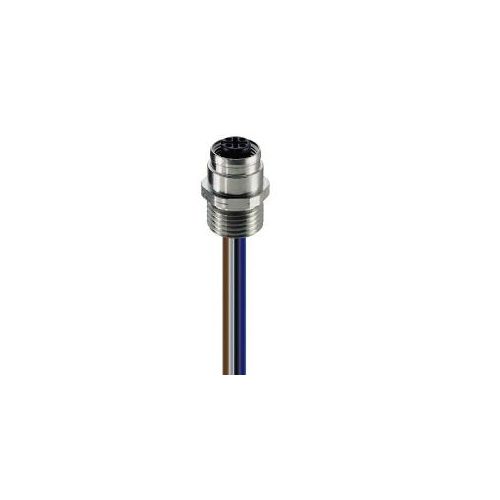

RKFM 4-3/2 M | 84252 | Connector
Receptacle Connector, M12 Female. 3 pole
| Complete Electronics Part No. | 84252 |
|---|---|
| Manufacturers Part No. | 84252 |
| Type: | Recptacle Connector |
| Mounting: | Front Mounting |
| Coded Option (Circular) | A |
| Cable Entry: | Straight |
| Number of poles | 3 |
| Rated Voltage: | 250V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 0.5 Metre |
| IP Rating: | IP67 |
Description
RKFM 4-3/2 M
Receptacle Connector
- For front mounting
- M12 female connector
- Assembled stranded wire
- Solder contacts potted with epoxy
- 3 Poles (Pin assignment 4 poles, pin 2+n.c.)
- A Coding
- Chassis side thread M16 x 1.5(panel nut RSKFM 16)
