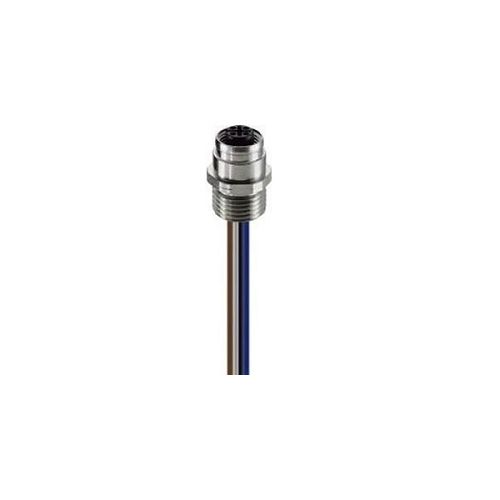

RKFM 5/20/0,5 M | 50617 | Connector
Receptacle connector, for front mounting, M12 female connector; 5 Pole
| Complete Electronics Part No. | 50617 |
|---|---|
| Manufacturers Part No. | 50617 |
| Type: | Recptacle Connector |
| Coded Option (Circular) | A |
| Male/Female: | Female M12 |
| Cable Entry: | Straight |
| Number of poles | 5 |
| Rated Voltage: | 63V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 0.5 Metre |
| IP Rating: | IP67 |
Description
RKFM 5/20/0,5 M
Receptacle connector, for front mounting, M12 female connector
- Assembled stranded wire,
- Solder contacts potted with epoxy,
- 5 poles,
- A coding,
- Chassis side thread M20 x 1,5 (panel nut RSKFM 20).
