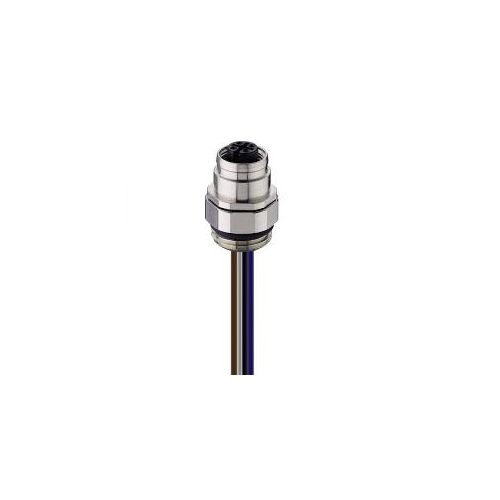

RKFPM 5/1 M | 934637726 | Connector
Receptacle Connector, M12 Female, 5 pole
| Complete Electronics Part No. | 934 637-726 |
|---|---|
| Manufacturers Part No. | 934637726 |
| Type: | Recptacle Connector |
| Mounting: | Front Mounting |
| Coded Option (Circular) | A |
| Male/Female: | Female M12 |
| Cable Entry: | Straight |
| Number of poles | 5 |
| Rated Voltage: | 63V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 0.5 Metre |
| IP Rating: | IP67 |
Description
RKFPM 5/1 M
Receptacle Connector
- For front mounting
- M12 female connector
- Assembled stranded wire
- Solder contacts potted with epoxy
- With adjustable nut
- 5 Poles
- A Coding
- Chassis side thread M16 x 1.5(panel nut RSKFM 16)
