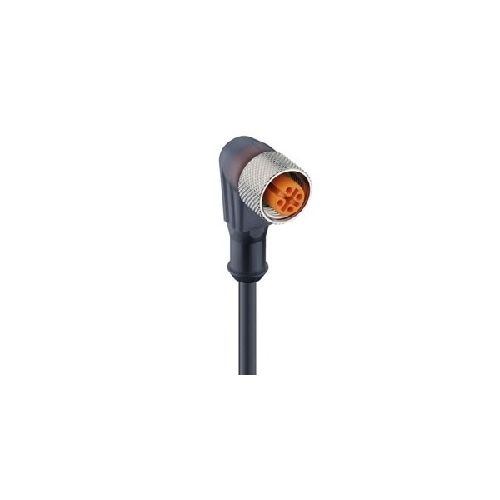

RKWT 4-3-260/2 M | 71290 | Cordset
Actuator/sensor cordset, single ended, M12 female, right angle, 4 pole connector, cable length 2 metres
| Complete Electronics Part No. | 71290 |
|---|---|
| Manufacturers Part No. | 71290 |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Right Angled |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4 A per cable / 4 A max. at 40°C |
| Cable Length: | 5 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RKWT 4-3-260/2 M
M12 Actuator/sensor cordset
- M12 female connector
- Right Angled version, with self-locking threaded joint
- Molded cable
- 4 pole Connector with 3 poles connected (pin 2 = n.c.)
- A coded
- PUR jacket, 2 meter
- IP67
