RKWT 8-6-337/10 M | 62981 | Cordset
M12 Single Ended Cordsets - Standard Types, A and U coding - 8-6 Poles - 10M
| Complete Electronics Part No. | 62981 |
|---|---|
| Manufacturers Part No. | 62981 |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Right Angled |
| Number of poles | 8 |
| Rated Voltage: | 36V |
| Rated Current: | 2 A at 40°C |
| Cable Length: | 10 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description

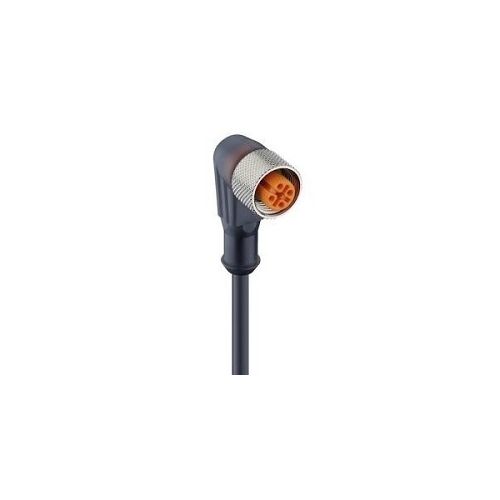

RKWT 8-6-337/10 M
M12 Actuator/sensor cordset
- M12 female connector, right angled version, with self-locking threaded joint
- 8 Pole Connector - 6 Poles connected
- To connect at pluggable miniature sensor distribution box type SBS,
- Molded cable
- PUR jacket
- 10 metres
