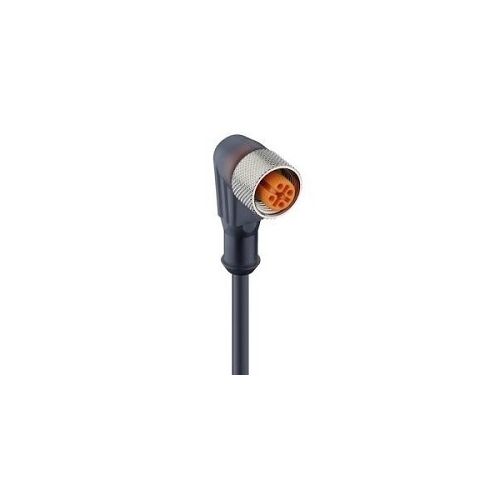

RKWT 8-6-337/20 M | 71544 | Cordset
M12 Single Ended Cordsets - Standard Types, A and U coding - 8-6 Poles, right angle
| Complete Electronics Part No. | 71544 |
|---|---|
| Manufacturers Part No. | 71544 |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Right Angled |
| Number of poles | 8 |
| Rated Voltage: | 36V |
| Rated Current: | 2 A at 40°C |
| Cable Length: | 5 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RKWT 8-6-337/20 M
M12 Actuator/sensor cordset
- M12 female connector, right angled version, with self-locking threaded joint
- 8 pole connector - 6 Poles connected (pins 6 and 8 nc)
- To connect at pluggable miniature sensor distribution box type SBS,
- Moulded cable, PUR jacket
- 20 metres
