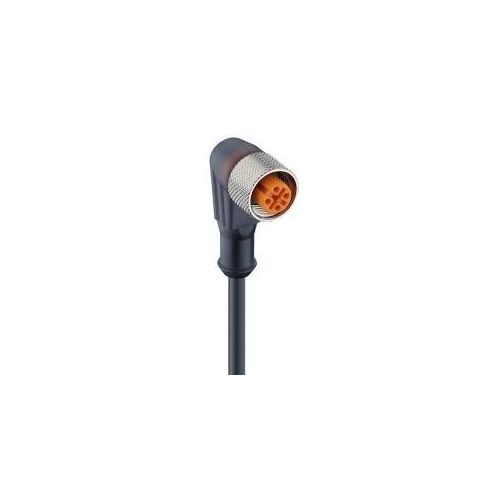

RKWT/LED A 4-3-06/2 M | 11471 | Cordset
Cordset, Single ended, Right angle, M12 female, 4 poles,PIN 2 = NC, 2 metres, LED
| Complete Electronics Part No. | 11471 |
|---|---|
| Manufacturers Part No. | 11471 |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Right Angled |
| Number of poles | 4 Pole - Pin 2=NC |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 2 Metres |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PVC |
| IP Rating: | IP67 |
Description
RKWT/LED A 4-3-06/2 M
Actuator/sensor cordset
- M12 female connector
- Right angled version with self-locking thread joint and moulded cable
- LED Operation and function indicator
- 4 Pole
- PIN 2 = NC
- 2 Metre
- A Circuit
- PVC Jacket
