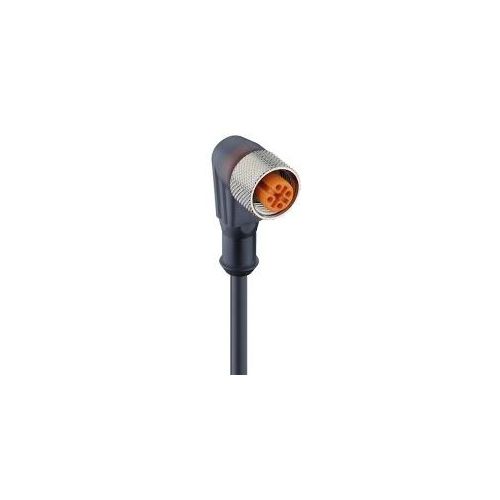

RKWT/LED A 4-3-260/5 M | 17572 | Cordset
Cordset, Single ended, M12 female, 4 pole, PIN 2 = NC cable length 5 metre
| Complete Electronics Part No. | 17572 |
|---|---|
| Manufacturers Part No. | 17572 |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Right Angled |
| Number of poles | 4 Pole - Pin 2=NC |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 5 Metres |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP65 |
Description
RKWT/LED A 4-3-260/5 M
Actuator/sensor Cordsets
- M12 female connector
- Right Angled
- With self-locking thread and moulded cable
- With LED operation and function indicator
- 4 Pole connector 3 poles connected (pin 2=n.c.)
- A Circuit
- PUR Jacket
- 5 Metre
