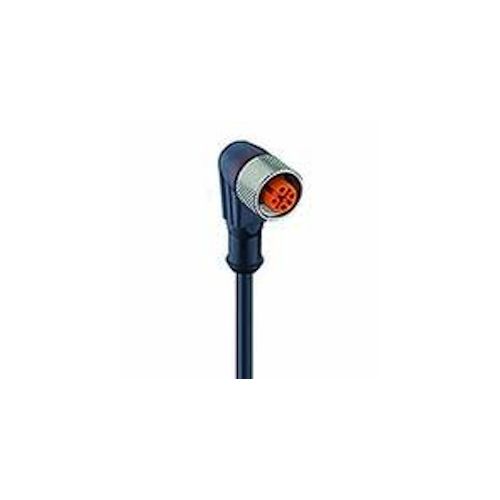

RKWT/LED W 4-265/8 M | 75318 | Cordset
Actuator/sensor cordset, single, M12 female, right angle, 4 pole, with LED, cable length 8 metres
| Complete Electronics Part No. | 75318 |
|---|---|
| Manufacturers Part No. | 75318 |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Right Angled |
| Number of poles | 4 |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 8 Metres |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RKWT/LED W 4-265/8 M
Actuator/sensor cordset
- M12 female connector
- Right angled version
- With self-locking threaded joint
- Moulded cable
- LED operation and function indicator
- 4 poles, with circuit
- PUR jacket,
- 8 meters
