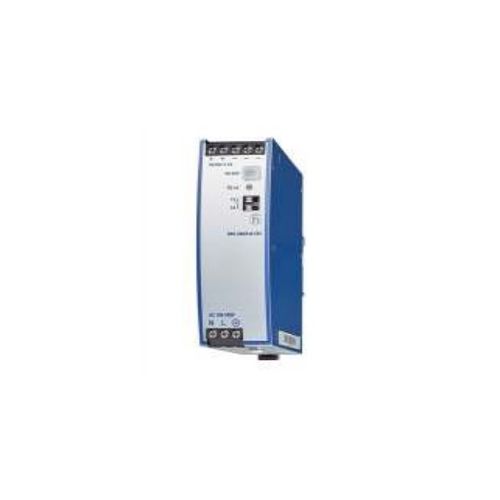

RPS260 PoE EEC (CC) | 942200001 | Power Supply
48 - 56 V DC (typ. 48 V) Power Supply externally adjustable, DIN Rail Mounting
| Complete Electronics Part No. | 942200001 |
|---|---|
| Manufacturers Part No. | 942 200-001 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 48 V DC / 5A |
Description
48 V DC DIN rail power supply unit
Voltage input 100-240 V AC (-15/+10%); 50-60Hz or 110 to 300 V DC (+/-20%)
Quick-connect spring clamp terminals
3-pin / 5 pin
Voltage output
48-56 V DC (typ. 48V); externally adjustable
Diagnostics: LED and relay contact
Operating temperature: -25-+70 °C
Power supply units can be connected in parallel
Dimensions (WxHxD): 39 mm x 124 mm x 117 mm
Weight: 600 g
Protection class: IP20
