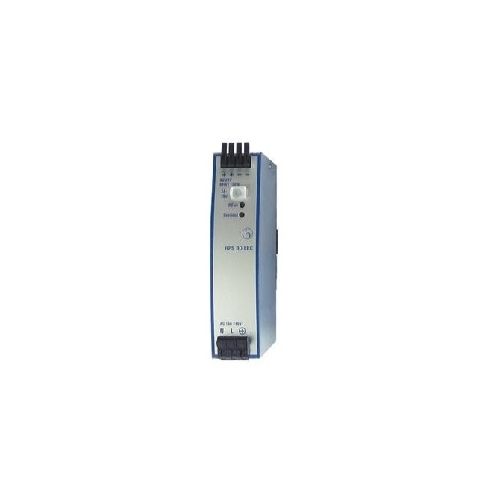

RPS80 EEC | 943662080 | Power Supply
24 V DC DIN rail power supply unit (24 - 28 V DC (typ. 24.1 V) external adjustable ), Input data: 100-240 V AC (+/-15%); 50-60Hz or 110 to 125 V DC
| Complete Electronics Part No. | 943662080 |
|---|---|
| Manufacturers Part No. | 943 662-080 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 2.5 A |
Description
RPS 80 EEC
- 24 V DC DIN rail power supply unit (24 - 28 V DC (typ. 24.1 V) external adjustable )
- Input data: 100-240 V AC (+/-15%); 50-60Hz or 110 to 125 V DC
- Operating temperature -25 ºC to +70 ºC (ab 60 ºC Derating)
- Dimensions (W x H x D) 32 mm x 124 mm x 102 mm
- Mounting: DIN Rail 35 mm
- Weight: 440 g
- Protection class: IP 20
- Part Number: 943 662-080
- Power supply units can be connected in parallel
