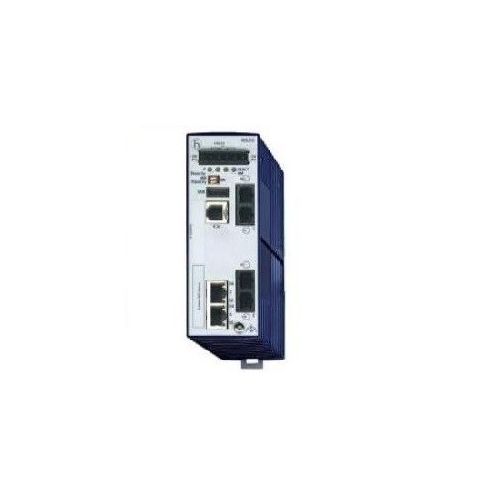

RS20-0400M2T1SDAEHHXX.X. | 943434009 | Industrial Ethernet
Managed 4 port Fast-Ethernet-Switch,2 x standard 10/100 BASE TX, RJ45, uplink: 100BASE-FX, MM-SC, uplink: 10/100BASE-TX, RJ45
| Complete Electronics Part No. | 943434009 |
|---|---|
| Manufacturers Part No. | 943 434-009 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports | 3 |
| Total 100 Base Ports | 1 |
| Total Ethernet Ports | 4 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS20-0400M2T1SDAEHH08.0.
4 port Fast-Ethernet-Switch
- Managed
- Software Layer 2 Enhanced
- For DIN rail
- Store-and-forward-switching
- Fanless design
- 1. uplink: 100BASE-FX, MM-SC
- 2. uplink: 10/100BASE-TX, RJ45
- 2 x standard 10/100 BASE TX, RJ45
- Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
- Operating temperature 0 ºC ... 60 ºC
- Dimensions (W x H x D) 47 mm x 131 mm x 111 mm
- Mounting DIN Rail
- Weight 400 g
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
