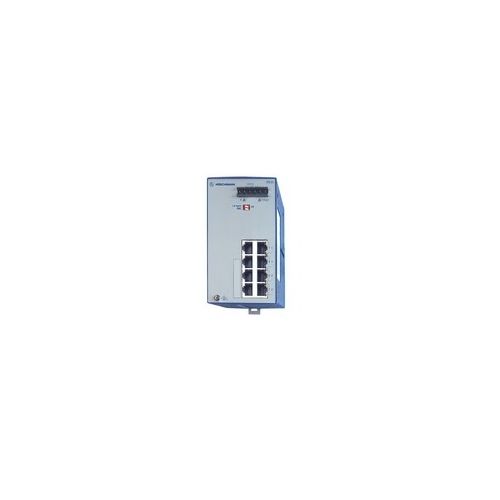

RS20-0800M2M2SDAUHH | Industrial Ethernet
Unmanaged 8 port Fast-Ethernet-Switch, 6 x standard 10/100 BASE TX, RJ45, uplink: 100BASE-FX, MM-SC, uplink: 100BASE-FX, MM-SC ***No Longer Available***
| Complete Electronics Part No. | RS200800M2M2SDAUHH |
|---|---|
| Manufacturers Part No. | RS20-0800M2M2SDAUHH |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS20-0800T1T1SDAUHH.
8 port Unmanaged Fast-Ethernet-Switch
store-and-forward-switching
1. uplink: 100BASE-FX, MM-SC RJ45
2. uplink: 100BASE-FX, MM-SC
6 x standard 10/100 BASE TX, RJ45
Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
Operating temperature 0 ºC ... 60 ºC
Unmanaged
For DIN rail
Fanless design
Dimensions (W x H x D) 74 mm x 131 mm x 111 mm
Mounting DIN Rail
Weight 410 g
Protection class IP20
***No Longer Available***
