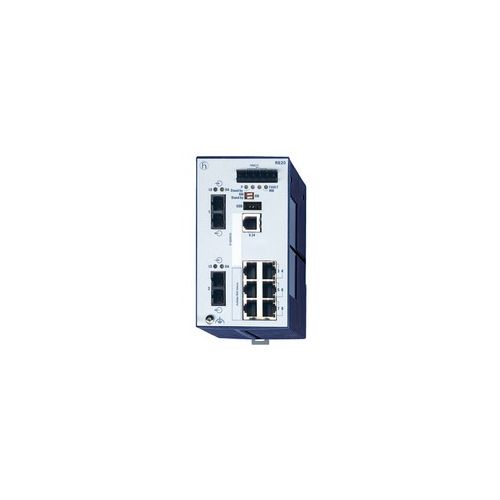

RS20-0800M2M2SDHPHH | 943434016 | Industrial Ethernet
8 port Fast-Ethernet-Switch, Managed, 6 x standard 10/100 BASE TX, RJ45, 2 x Uplink: 100BASE-FX, MM-SC
| Complete Electronics Part No. | 943434016 |
|---|---|
| Manufacturers Part No. | 943 434-016 |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS20-0800M2M2SDHPHH
- 8 port Fast-Ethernet-Switch
- Managed
- Software Layer 2 Professional
- For DIN rail store-and-forward-switching
- Fanless design
- 8 ports in total;
- Uplink: 100BASE-FX, MM-SC
- Uplink: 100BASE-FX, MM-SC
- 6 x standard 10/100 BASE TX, RJ45
- Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
- Operating temperature 0 ºC ... 60 ºC
- Dimensions (W x H x D) 74 mm x 131 mm x 111 mm
- Mounting DIN Rail
- Weight 410 g
- Protection class IP20
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
