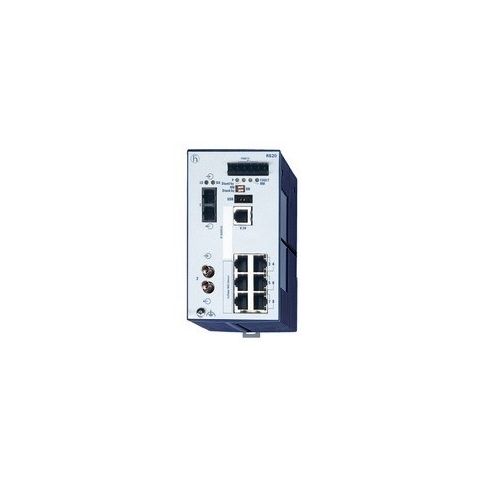

RS20-0800M4M4SDAEHH | 943434017 | Industrial ethernet

8 Port managed Fast ETHERNET-switch, 6 x standard 10/100 BASE TX, RJ45, 2 x Uplink Ports: 100BASE-FX, MM-ST
More Information
Complete Electronics Part No. 943434017
Manufacturers Part No. 943 434-017
Ethernet Product Type: Managed Switch
Total 10/100 (RJ45) Ports: 6
Total 100 Base Ports: 2
Total Ethernet Ports: 8
FX (Optical) Connector Type: ST
FX (Optical) Cable Type: Multi Mode (MM)
Operating Voltage: 12/24/48 V DC & 24V AC
Mounting: DIN Rail
IP Rating: IP20
Description

RS20-0800M4M4SDAEHH

  8 port Fast-Ethernet-Switch

  • Managed,Switch
  • Software Layer 2 Professional,
  • For DIN rail
  • Store-and-forward switching,
  • Fanless design
  • 8 ports in total;
  • Uplink Port: 100BASE-FX, MM-ST;
  • Uplink Port: 100BASEFX,MM-ST,
  • 6 x standard 10/100 BASE TX, RJ45
  • Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V
  • Operating temperature 0º to +60ºC
  • Dimensions (W x H x D) 74 x 13
  • Weight 410 g
  • Protection class IP20 Mechanical stability

***Product Discontinuation Notice***

Last Order Date: Dec 31st 2023

Last Delivery Date: June 30th 2024

Last Service Date: June 30th 2029
