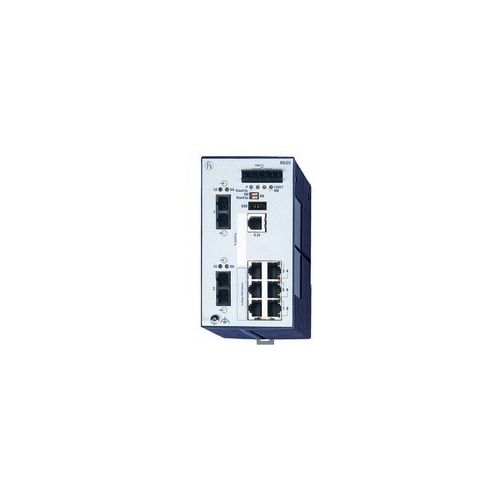

RS20-0800M4M4SDAPHH08.0 | 943434018 | Industrial Ethernet

Managed Ethernet Switch, 8 Ports for DIN rail, 2 x uplink 100BASE-FX, MM-ST, 6 x standard 10/100 BASE TX, RJ45
More Information
Complete Electronics Part No. 943434018
Manufacturers Part No. 943 434-018
Ethernet Product Type: Managed Switch
Total 10/100 (RJ45) Ports: 6
Total 100 Base Ports: 2
Total Ethernet Ports: 8
FX (Optical) Connector Type: ST
FX (Optical) Cable Type: Multi Mode (MM)
Operating Voltage: 12/24/48 V DC & 24V AC
Mounting: DIN Rail
IP Rating: IP20
Description

RS20-0800M4M4SDAPHH08.0.

Managed 8 port fast Ethernet switch

  • Software layer 2 Professional version
  • For DIN rail store and forward switching
  • Fanless design
  • 1. uplink: 100BASE-FX, MM-ST
  • 1. uplink: 100BASE-FX, MM-ST
  • 6 x standard 10/100 BASE TX, RJ45
  • Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
  • Operating temperature 0 ºC ... 60 ºC
  • Dimensions (W x H x D) 74 mm x 131 mm x 111 mm
  • Mounting DIN Rail
  • Weight 410 g
  • Protection class IP20

***Product Discontinuation Notice***

Last Order Date: Dec 31st 2023

Last Delivery Date: June 30th 2024

Last Service Date: June 30th 2029
