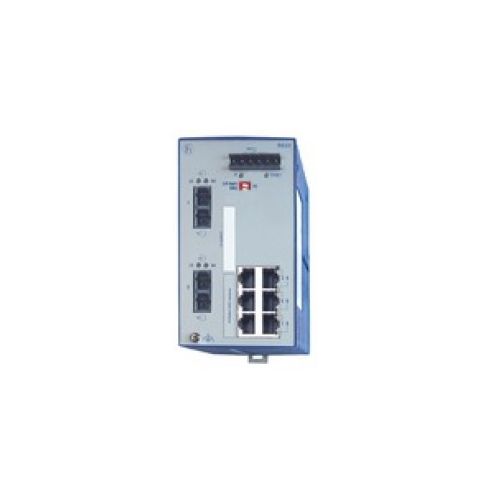

RS20-0800S2S2TDAUHH | Industrial Ethernet
Unmanaged 8 port Fast-Ethernet-Switch, 2.x uplink: 100BASE-FX SM-SC, 6 x standard 10/100 BASE TX, RJ45, Protection class IP20 ***No Longer Available***
| Complete Electronics Part No. | RS200800S2S2TDAUHH |
|---|---|
| Manufacturers Part No. | RS20-0800S2S2TDAUHH |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS20-0800S2S2TDAUHH
8 port Unmanaged Fast-Ethernet-Switch
store-and-forward-switching
1. uplink: 100BASE-FX SM-SC
2. uplink: 100BASE-FX SM-SC
6 x standard 10/100 BASE TX, RJ45
Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
Operating temperature -40 ºC ... 70 ºC
UnManaged
For DIN rail
Fanless design
Dimensions (W x H x D) 74 mm x 131 mm x 111 mm
Weight 410 g
Protection class IP20
***No Longer Available***
