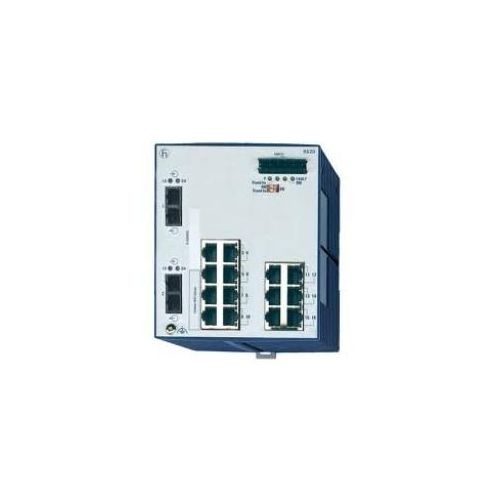

RS20-1600S2S2SDAUHHXX.X | 943434053 | Industrial Ethernet
16 port Fast-Ethernet-Switch, Unmanaged, 14 x standard 10/100 BASE TX, RJ45, 2 x uplink: SM-SC ***No Longer Available***
| Complete Electronics Part No. | 943434053 |
|---|---|
| Manufacturers Part No. | 943 434-053 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 (RJ45) Ports: | 14 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 16 |
| FX (Optical) Connector Type: | SC |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS20-1600S2S2SDAUHHXX.X
16 port Fast-Ethernet-Switch
- Unmanaged
- For DIN rail store-and-forward-switching
- Fanless design
- 16 ports in total
- 2. uplink: 100BASE-FX, SM-SC
- 14 x standard 10/100 BASE TX, RJ45
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
- Operating temperature 0 ºC ... 60 ºC
- Dimensions (W x H x D) 110 mm x 131 mm x 111 mm
- Mounting: DIN Rail
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
