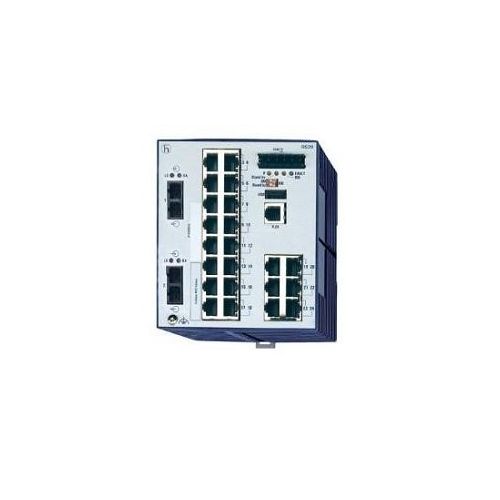

RS20-2400M2M2SDAEHHXX.X. | 943434043 | Industrial Ethernet

Managed 24 port Fast-Ethernet-Switch, 2 x uplink: 100BASE-FX, MM-SC, 22 x standard 10/100 BASE TX, RJ45, Software Layer 2 Enhanced
More Information
Complete Electronics Part No. 943434043
Manufacturers Part No. 943 434-043
Ethernet Product Type: Managed Switch
Total 10/100 (RJ45) Ports: 22
Total 100 Base Ports: 2
Total Ethernet Ports: 24
FX (Optical) Connector Type: SC
FX (Optical) Cable Type: Multi Mode (MM)
Mounting: DIN Rail
IP Rating: IP20
Description

RS20-2400M2M2SDAEHH08.0.

24 port Fast-Ethernet-Switch

  • Managed
  • Software Layer 2 Enhanced
  • For DIN rail
  • Store-and-forward-switching
  • Fanless design
  • 24 ports in total
  • 1. uplink: 100BASE-FX, MM-SC
  • 2. uplink: 100BASE-FX, MM-SC
  • 22 x standard 10/100 BASE TX, RJ45
  • Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
  • Current consumption at 48 V DC 332 mA
  • Operating temperature 0 ºC ... 60 ºC
  • Dimensions (W x H x D) 110 mm x 131 mm x 111 mm
  • Weight 650 g
  • Protection class IP20

***Product Discontinuation Notice***

Last Order Date: Dec 31st 2023

Last Delivery Date: June 30th 2024

Last Service Date: June 30th 2029
