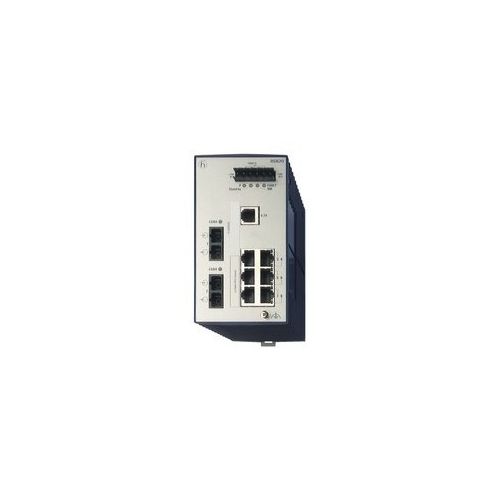

RSB20-0800M2M2SAABEH | 942014018 | Industrial Ethernet
8 Port Managed Industrial Ethernet switch for DIN Rail, 2 x uplink 100BASE-FX, MM-SC, 6 x standard 10/100 BASE TX, RJ45
| Complete Electronics Part No. | 942014018 |
|---|---|
| Manufacturers Part No. | 942 014-018 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | DC 24 V |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RSB20-0800M2M2SAABEH
Industrial switch for DIN Rail
- Ethernet/Fast Ethernet-Switch acc. to IEEE 802.3
- Compact
- Managed
- Store-and-Forward-Switching
- Fanless design
- EtherNet/IP and PROFINET compatible
- 8 ports in total
- 1. uplink: 100BASE-FX, MM-SC
- 2. uplink: 100BASE-FX, MM-SC
- 6 x standard 10/100 BASE TX, RJ45
- Operating voltage 24 V DC (18-32 V)
- Current consumption at 24 V DC 315 mA
- Operating temperature 0 ºC ... 60 ºC
- Dimensions (W x H x D) 71 mm x 131 mm x 111 mm
- Mounting DIN Rail
- Weight 400 g
- Protection class IP20
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
