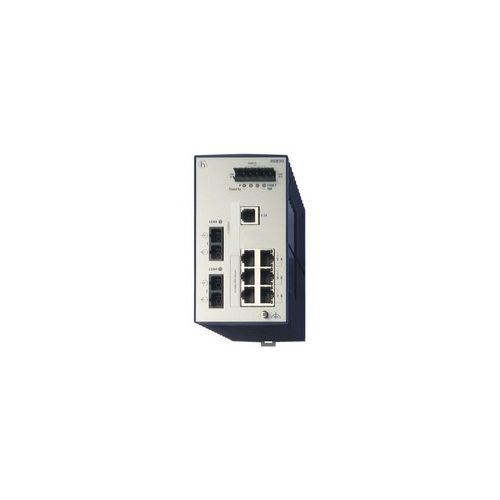

RSB20-0800S2S2TAABHH | 942014011 | Industrial Ethernet

8 Port managed Ethernet/Fast Ethernet-Switch, 6 x standard 10/100 BASE TX, RJ45, 2 x uplink: 100BASE-FX, SM-SC
More Information
Complete Electronics Part No. 942014011
Manufacturers Part No. 942 014-011
Ethernet Product Type: Managed Switch
Total 10/100 (RJ45) Ports: 6
Total 100/1000 (FX) Ports: 2
Total Ethernet Ports: 8
FX (Optical) Connector Type: SC
FX (Optical) Cable Type: Single Mode (SM)
Operating Voltage: DC 18V to 32V
Mounting: DIN Rail
IP Rating: IP20
Description

RSB20-0800S2S2TAABHH

Ethernet/Fast Ethernet-Switch acc. to IEEE 802.3,


  • Compact,
  • Managed, Industrial switch for DIN Rail,
  • Store-and-Forward-Switching,
  • Fanless design
  • EtherNet/IP and PROFINET compatible
  • 8 ports in total
  • 1. uplink: 100BASE-FX, SM-SC
  • 2. uplink: 100BASE-FX, SM-SC
  • 6 x standard 10/100 BASE TX, RJ45
  • Operating voltage 24 V DC (18-32 V
  • Current consumption at 24 V DC 315 mA
  • Operating temperature -40 ºC ... 70 ºC
  • Dimensions (W x H x D) 71 mm x 131 mm x 111 mm
  • Mounting DIN Rail
  • Weight 400 g
  • Protection class IP20

***Product Discontinuation Notice***

Last Order Date: Dec 31st 2023

Last Delivery Date: June 30th 2024

Last Service Date: June 30th 2029
