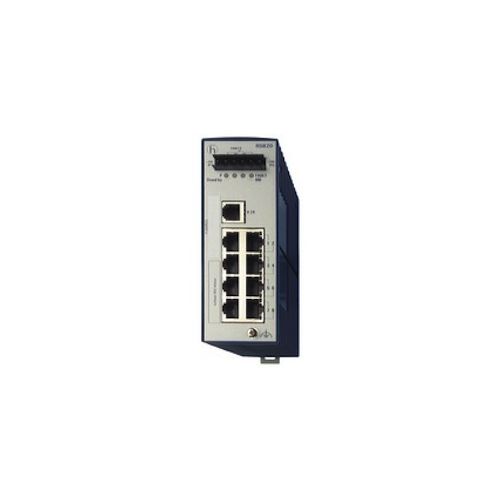

RSB20-0800T1T1SAABEH | 942014017 | Industrial Ethernet

8 Port Managed Industrial ethernet switch for DIN Rail, 6 x standard 10/100 BASE TX, RJ45, 2 x. uplink: 10/100BASE-TX, RJ45
More Information
Complete Electronics Part No. 942014017
Manufacturers Part No. 942 014-017
Ethernet Product Type: Managed Switch
Total 10/100 (RJ45) Ports: 8
Total Ethernet Ports: 8
Operating Voltage: DC 24 V
Mounting: DIN Rail
IP Rating: IP20
Description

RSB20-0800T1T1SAABEH

Industrial switch for DIN Rail

  • Ethernet/Fast Ethernet-Switch acc. to IEEE 802.3
  • Compact,
  • Managed
  • Store-and-Forward-Switching
  • Fanless design
  • EtherNet/IP and PROFINET compatible
  • 8 ports in total
  • 2 x. uplink: 10/100BASE-TX, RJ45
  • 6 x standard 10/100 BASE TX, RJ45
  • Operating voltage 24 V DC (18-32 V)
  • Current consumption at 24 V DC 215 mA
  • Operating temperature 0 ºC ... 60 ºC
  • Dimensions (W x H x D) 47 mm x 131 mm x 111 mm
  • Mounting DIN Rail
  • Weight 400 g
  • Protection class IP20

***Product Discontinuation Notice***

Last Order Date: Dec 31st 2023

Last Delivery Date: June 30th 2024

Last Service Date: June 30th 2029
