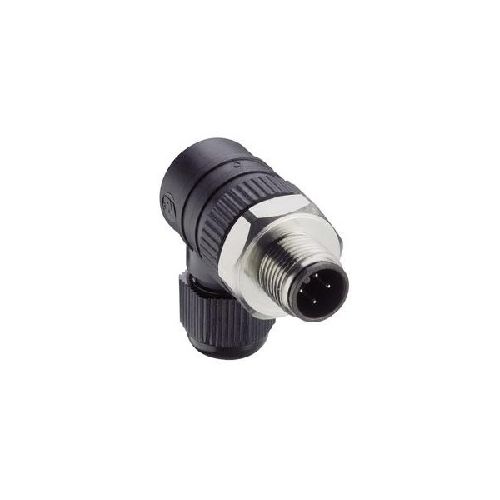

RSCWN 5/9 | 47756 | Connector
M12 male connector, right angled version, 5 Pole
| Complete Electronics Part No. | 47756 |
|---|---|
| Manufacturers Part No. | 47756 |
| Type: | Cable Plug |
| Termination: | Screw |
| Coded Option (Circular) | A |
| Male/Female: | Male M12 |
| Cable Entry: | Right Angled |
| Number of poles | 5 |
| Rated Voltage: | 60V |
| Rated Current: | 4A at 40°C |
| IP Rating: | IP67 |
Description
RSCWN 5/9
M12 male connector, right angled version
- 5 Poles
- With stainless steel hexagon threaded joint
- Assembling with screw terminals
- Especially designed for use in food processing equipment
- Environmental temperature -25 ºC ... 90 ºC
- Degree of protection (IP), mounted IP67
