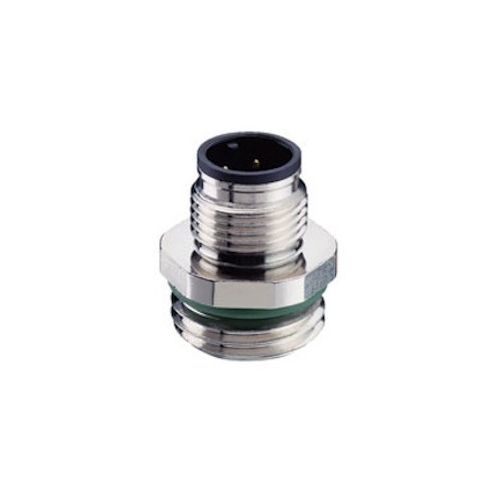

RSFM 3 | 26478 | Connector
Receptacle Connector, M12, 3 pole
| Complete Electronics Part No. | 26478 |
|---|---|
| Manufacturers Part No. | 26478 |
| Type: | Recptacle Connector |
| Termination: | Solder |
| Mounting: | Front Mounting |
| Coded Option (Circular) | A |
| Male/Female: | Male M12 |
| Cable Entry: | Straight |
| Number of poles | 3 |
| Rated Voltage: | 250V |
| Rated Current: | 4A at 40°C |
| IP Rating: | IP67 |
Description
RSFM 3
Receptacle Connector
- For front mounting
- M12 male connector
- Solder connections
- 3 Poles
- A Coding
- Chassis side thread M16 x 1.5 (panel nut RSKFM 16)
