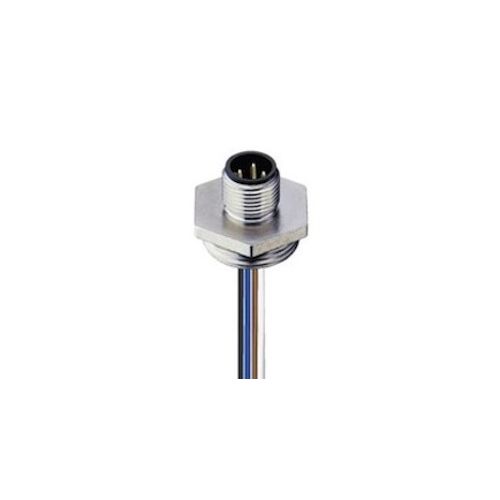

RSFM 4/0,5 M | 26144 | Connector
Receptacle Connector, M12 male, 4 pole, cable length 0.5m
| Complete Electronics Part No. | 26144 |
|---|---|
| Manufacturers Part No. | 26144 |
| Type: | Recptacle Connector |
| Mounting: | Front Mounting |
| Coded Option (Circular) | A |
| Male/Female: | Male M12 |
| Cable Entry: | Straight |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 0.5 Metre |
| IP Rating: | IP67 |
Description
RSFM 4/0,5 M
Receptacle Connector
- For front mounting
- M12 male connector
- Assembled stranded wire
- Solder contacts potted with epoxy
- 4 Poles
- A Coding
- Chassis side thread M16 x 1.5 (panel nut RSKFM 16)
