RSM 5-293/25 M | 934876012 | M8 Single ended cordset

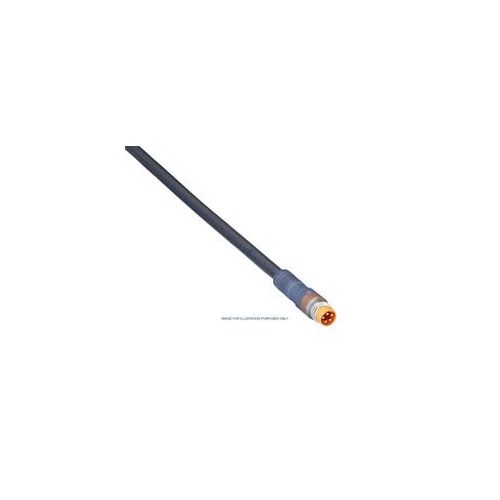

Sensor/actuator cordset, single-ended: M8, 5-pole, male straight connector, PUR cable, 25 metre length.
| Complete Electronics Part No. | 934876012 |
|---|---|
| Manufacturers Part No. | RSM 5-293/25 M |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M8: | M8 Male |
| Cable Entry: | Straight |
| Number of poles | 5 |
| Rated Voltage: | 63V |
| Rated Current: | 3A |
| Cable Length: | 25 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP65 / 67 |
| Coded Option (Circular) | B |
Description
934876012
Sensor/actuator cordset, single-ended
- M8, 5-pole
- Male straight connector with moulded cable
- PUR jacket
- B Coded
- Rated Voltage:63V ac/dc
- Rated Current: 3 A (0,25 mm²) / 4 A (0,34 mm²)
- Colour: Black
- IP65 / IP67 when mounted
- Halogen-free
- Drag chain proof,
- 25 metre length.
