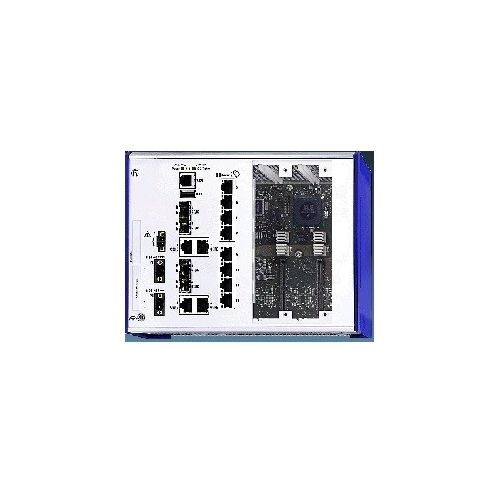

RSPE | Rail Switch Power Enhanced | Configurable Switch
RSPE,- Rail Switch Power Enhanced, Configurable Switch
More Information
Complete Electronics Part No.
RSPE
Manufacturers Part No.
RSPE
Ethernet Product Type:
Configurable Switch
Description
RSPE- Rail Switch Power Enhanced
Configurable Switch
Up to 28 ports, of which 24 Fast Ethernet plus
4 Gigabit Ethernet ports for twisted pair cable
and fiber optic cable (via SFP)
Router redundancy, static port and VLAN based routing for increased reliability and security
Comprehensive security mechanisms bringing all-around network protection
24 - 48 VDC redundant, or 60 - 250 VDC and 110 - 230 VAC optional redundant, PoE/PoE+ with 48/54 VDC
Cost-effective powering of devices via PoE/PoE+
Comprehensive management, diagnosis and filter functions
Broad immunity to electrostatic discharges plus high vibration resistance
Operating temperature range from -40° C to +70° C (standard model: 0°C to +60°C)
Protection Class IP30
Compact stainless steel housing for DIN rail mounting
Switch Versions RSPE 30, RSPE 32, RSPE 35, RSPE 37
***** Download datasheet for configuration options or use the link below *****
Link to RSPE Product Configurator
