RST 3-RKMW/LED A 3-224/5 M | 14686 | M8 Double Ended Cordset M8 M12
Cordset - Double ended, M12 male 3 Pole to M8 female connector, angled 3 Pole, LED operation and function indicator (pnp), cable length 5 metres
| Complete Electronics Part No. | 14686 |
|---|---|
| Manufacturers Part No. | 14686 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M8 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 5 Metres |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP65 |
Description

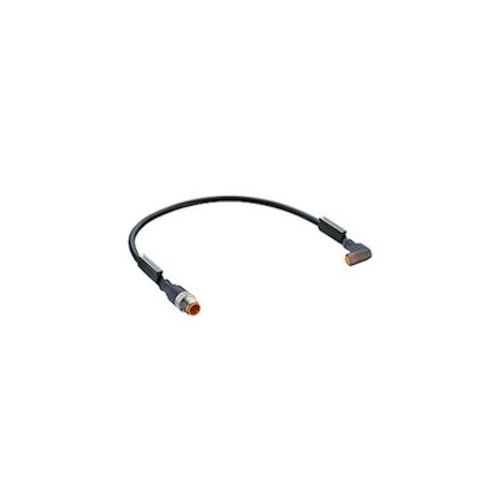

RST 3-RKMW/LED A 3-224/5 M
Double-ended cordset for sensors and actuators
- M12 male connector with self-locking threaded joint, straight, 3 Pole
- To
- M8 female connector with snap-in joint, angled, 3 Pole
- LED operation and function indicator
- 5 Metre
- PUR Jacket
- Halogen Free
- Black
